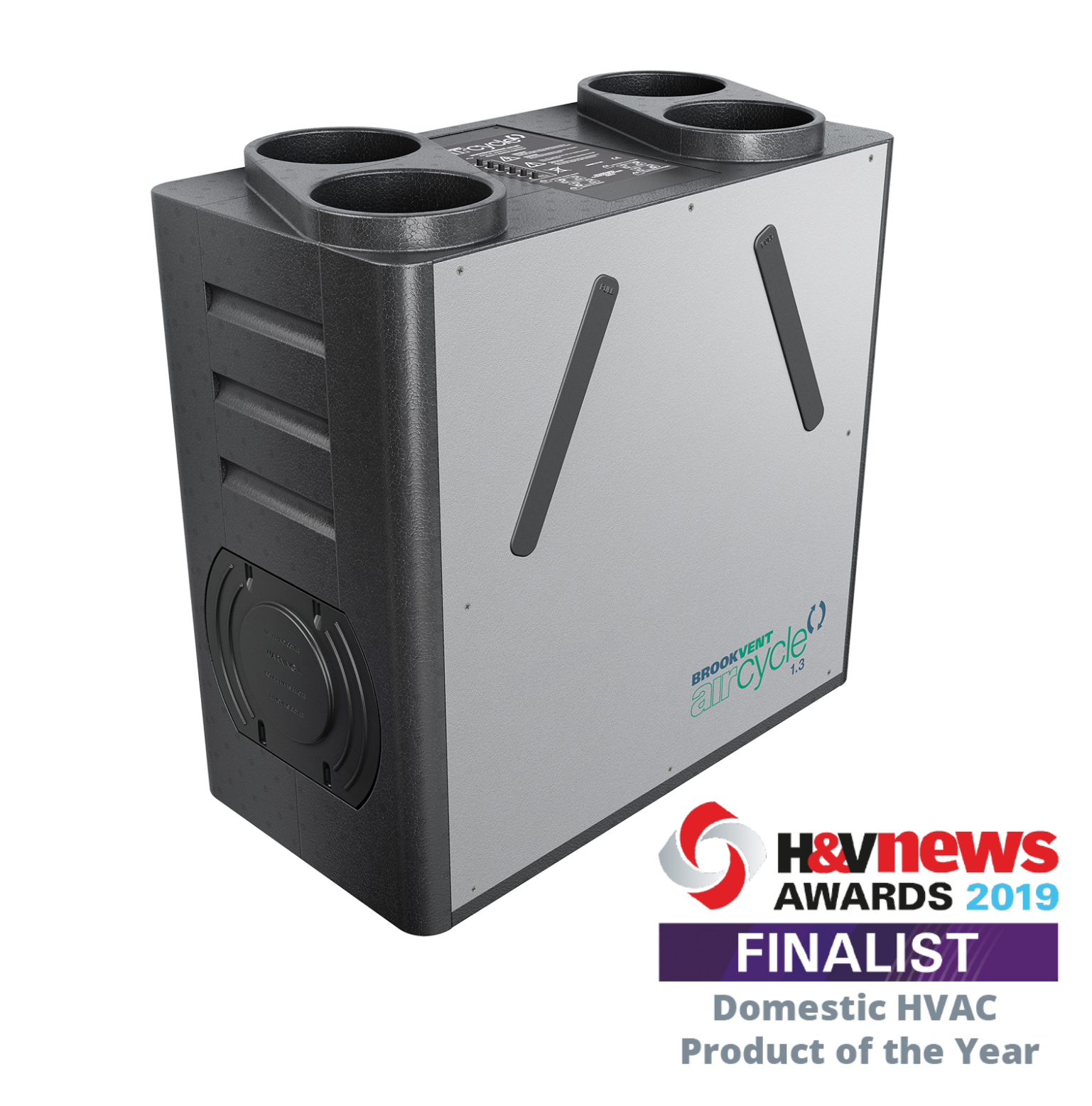

Quiet, efficient and highly versatile, the Brookvent Aircycle 1.3 heat recovery ventilation system is suitable for residential uses, in small to medium apartments and dwellings.

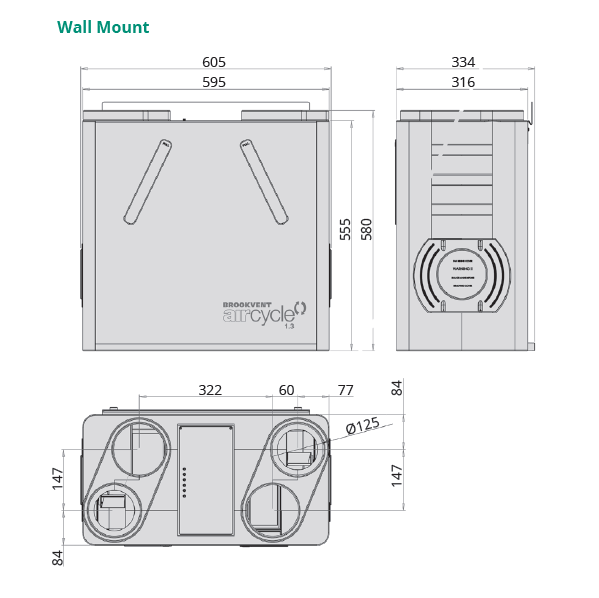

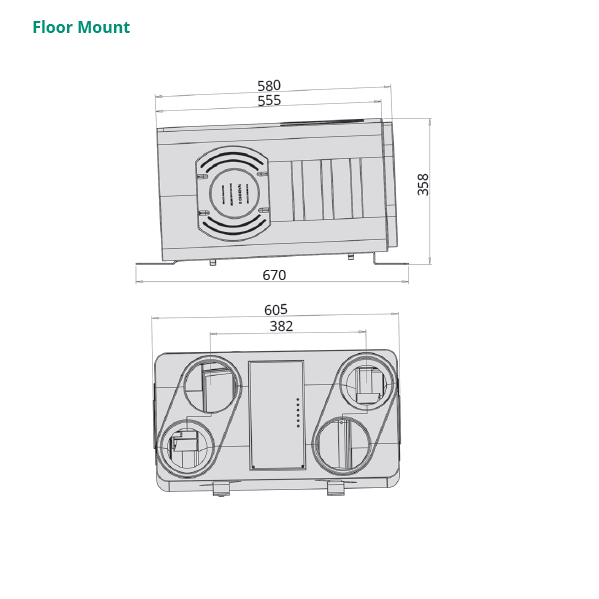

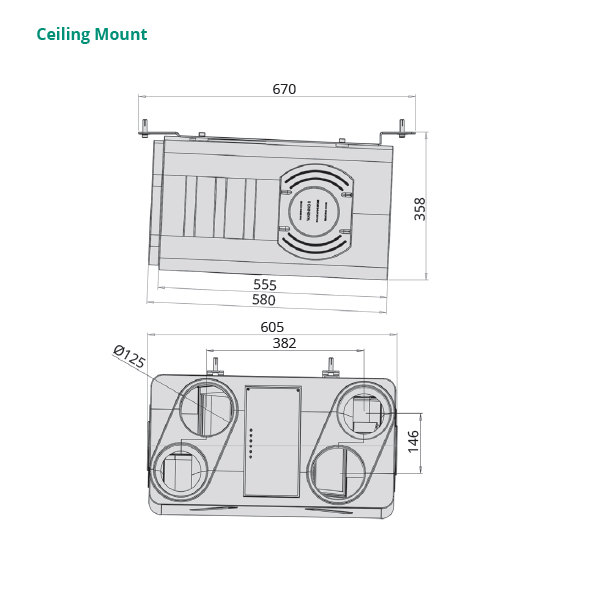

With the option to mount on a wall, floor, or ceiling, this heat recovery system’s versatility makes it perfect for the constraints of modern living. Taking air that would usually be expelled into the atmosphere and efficiently recovering heat from it, the Aircyce 1.3 extracts from wet rooms (for example your bathroom or kitchen), and transfers this heat into fresh air drawn in by the system. This is then filtered and distributed through your other rooms.
It ranges down to 0.42 W/l/s Specific fan power, and ranges up to 92% heat recovery efficiency. Significantly reducing the space heating demand of your property, the Aircycle 1.3 delivers a healthier, more comfortable environment. Engineered for reliability, it also comes with a five year manufacturer’s guarantee.

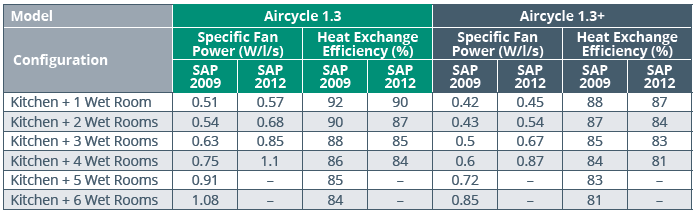

SAP Appendix Q: Listed Results

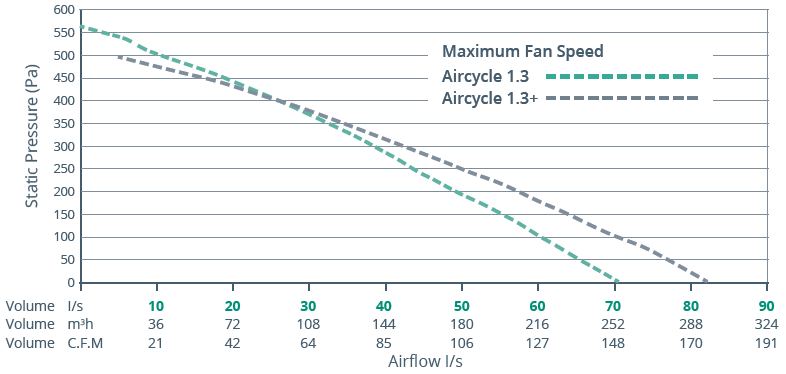

Airflow: Pressure / Performance Curve
Weight
11kg
Materials
- Main enclosure: High density, impact resistant EPP (Expanded Polypropylene)
- PCB & control panel enclosure: ABS FR
- Filters: Polyester media (G3)
- Mounting bracket: Zinc plated steel
- Fan Scrolls: ABS

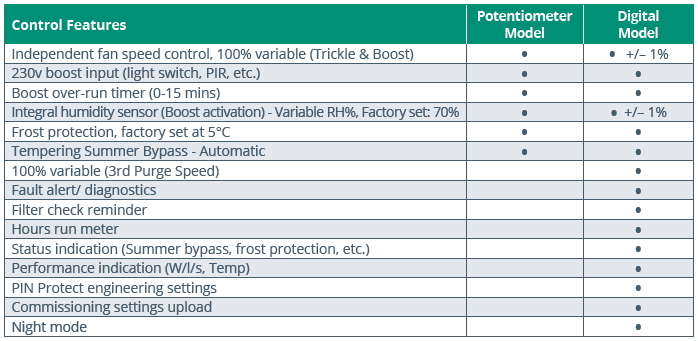

Electrical & Controls:
- 230v EC low energy, backward curved centrifugal fans
- Supplied complete with 4 core flying lead: (Live: Brown), (Neutral: Black), (Earth: Yellow & Green), (230v Switched Live (Boost): Grey)
- Plug and play components for easy maintenance
Standards
- Fully complies with Building Regulations for UK & Ireland
- SAP Appendix Q Listed | Energy Savings Trust Best Practice | CE
SPF
Range down to 0.42 W/l/s
Efficiency
Range up to 92%
Guarantee
5 Years

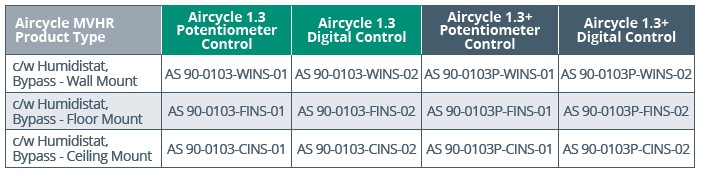

Product Codes
Product codes shown refer to ‘standard’ duct config.
Add “V” to the end of each product code for an ‘inverted’ duct config.
