SM1000 +

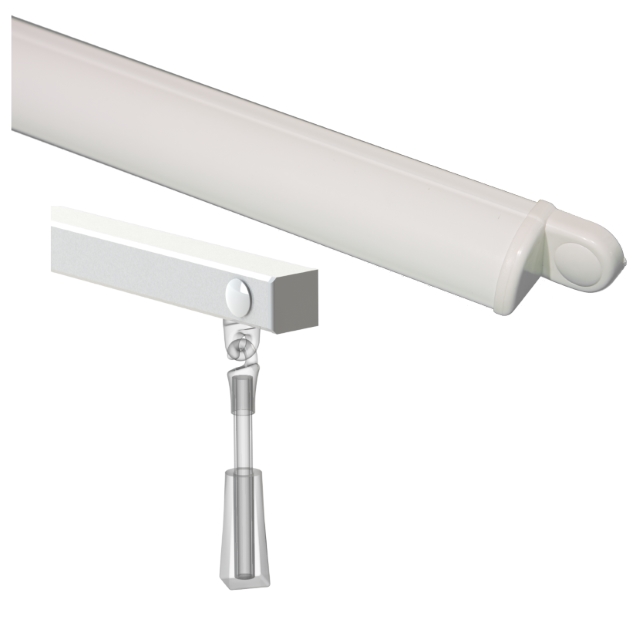

The SM 1000+ combines all the great benefits of the SM 1000 with a rod control operation that complies with Part F & Part N (Building Regulations:
England & Wales) ensuring control access and ease of operation for the end user.
SLIMLINE VENT
MANUAL CONTROL
THERMAL FOAL SEAL
INSECT GRILLE
ALUMINIUM CONSTRUCTION
DOUBLE-ACTION CLOSE POSITION
POLYESTER POWDER COATED
10 YEAR GUARANTEE
The SM 1000 is available in a wide range of sizes, colors and control options to suit your specific project needs.
Choose from our stocked off-the-shelf range or indeed create something a little more bespoke.
COLOURS
| White (HIPCA) "Satin" | Brown RAL 8017 "Satin" |
| Black (RAL 9005 "Satin" | Oak RAL 8003 "Satin" |
| Mill Finish | Bespoke Colours and Finishes Available |
READYMADE & BESPOKE SIZES
BAR LENGTH
FULLY CONTROLLABLE VENTILATION
UPWARD DEFLECTING SLOT TRICKLE
GEOMETRIC MODULAR SIZES
| Equivalent Area | Geometric Open Area | Overall Slot Size | Overall Vent Length | Overall Hood Length |
|---|---|---|---|---|
| 2500mm² | 3450mm² | 10mm x 345mm | 420mm | 390mm |
| 3000mm² | 4150mm² | 10mm x 415mm | 490mm | 460mm |
| 3500mm² | 4850mm² | 10mm x 485mm | 560mm | 530mm |
| 4000mm² | 5550mm² | 10mm x 555mm | 630mm | 600mm |
ACOUSTICS
Under normal conditions the airvent SM 1000+ achieved the following Sound Reduction results:
| POSITION | ACOUSTIC DETAIL |
|---|---|
| OPEN | Up to 32 db Dnt Rw |
| CLOSED | Up to 43 db Dnt Rw |
| OPEN | Up to 29 db Dne W |
| CLOSED | Up to 40 db Dne W |
| Acoustic test data available upon request | |
MATERIALS
- Vent and hood: Extruded aluminium
- End caps: uPVC (UV Stable)
- Paint: Polyester powder coated
STANDARDS
- Fully complies with Building Regulations for UK & Ireland
- Tested in accordance with BS EN 13141-1:2004 (air-flow, air-leakage and weather tightness).
GUARANTEE
10 Years
