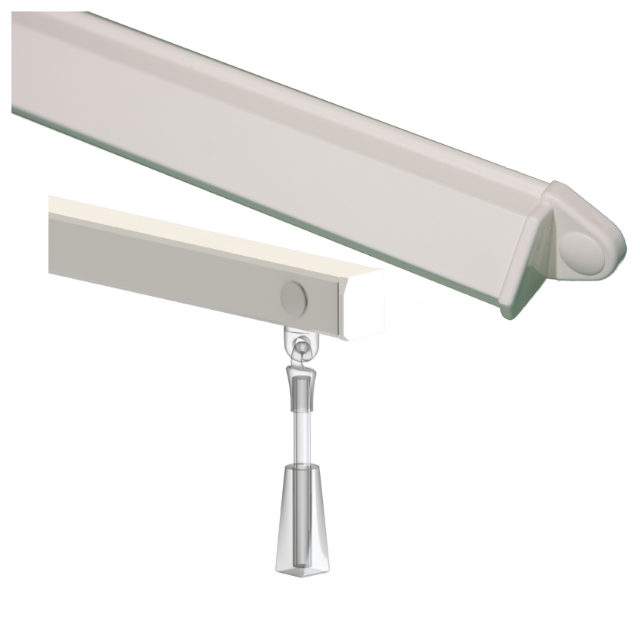

SM 1200+
The SM 1200+ combines all the great benefits of the SM 1200 with a rod control operation that complies with Part F & Part N (Building Regulations:England & Wales) ensuring control access and ease of operation for the end user.
ROD CONTROL
THERMAL FOAM SEAL
INSECT GRILLE
ALUMINIUM CONSTRUCTION
DOUBLE-ACTION CLOSE POSITION
POLYESTER POWDER COATED
10 YEAR GUARANTEE
The SM 1200+ is available in a wide range of size and color options to suit your specific project needs.
Choose from our stocked off-the-shelf range or indeed create something a little more bespoke.
COLOURS
| White (HIPCA) "Satin" | Brown RAL 8017 "Satin" |
| Black (RAL 9005 "Satin" | Oak RAL 8003 "Satin" |
| Mill Finish | Bespoke Colours and Finishes Available |
READYMADE & BESPOKE SIZES
BAR LENGTH
FULLY CONTROLLABLE VENTILATION
UPWARD DEFLECTING SLOT TRICKLE
EQUIVALENT MODULAR SIZES
| Equivalent Area | Geometric Open Area | Overall Slot Size | Overall Vent Length | Overall Hood Length |
|---|---|---|---|---|
| 2500mm² | 3315mm² | 13mm x 255m | 355mm | 300mm |
| 3000mm² | 3900mm² | 13mm x 300mm | 400mm | 345mm |
| 3500mm² | 4550mm² | 13mm x 350mm | 450mm | 395mm |
| 4000mm² | 5135mm² | 13mm x 395mm | 495mm | 440mm |
| 4500mm² | 5720mm² | 13mm x 440mm | 540mm | 485mm |
| 5000mm² | 6305mm² | 13mm x 485mm | 585mm | 530mm |
ACOUSTICS
Under normal conditions the airvent SM 1200+ achieved the following Sound Reduction results:
| POSITION | ACOUSTIC DETAIL |
|---|---|
| OPEN | Up to 30 db Dne W |
| CLOSED | Up to 47 db Dne W |
| Acoustic test data available upon request | |
MATERIALS
- Vent and hood: Extruded aluminium
- End caps: uPVC (UV Stable)
- Paint: Polyester powder coated
STANDARDS
- Fully complies with Building Regulations for UK & Ireland
- Tested in accordance with BS EN 13141-1:2004 (air-flow, air-leakage and weather tightness).
GUARANTEE
10 Years
